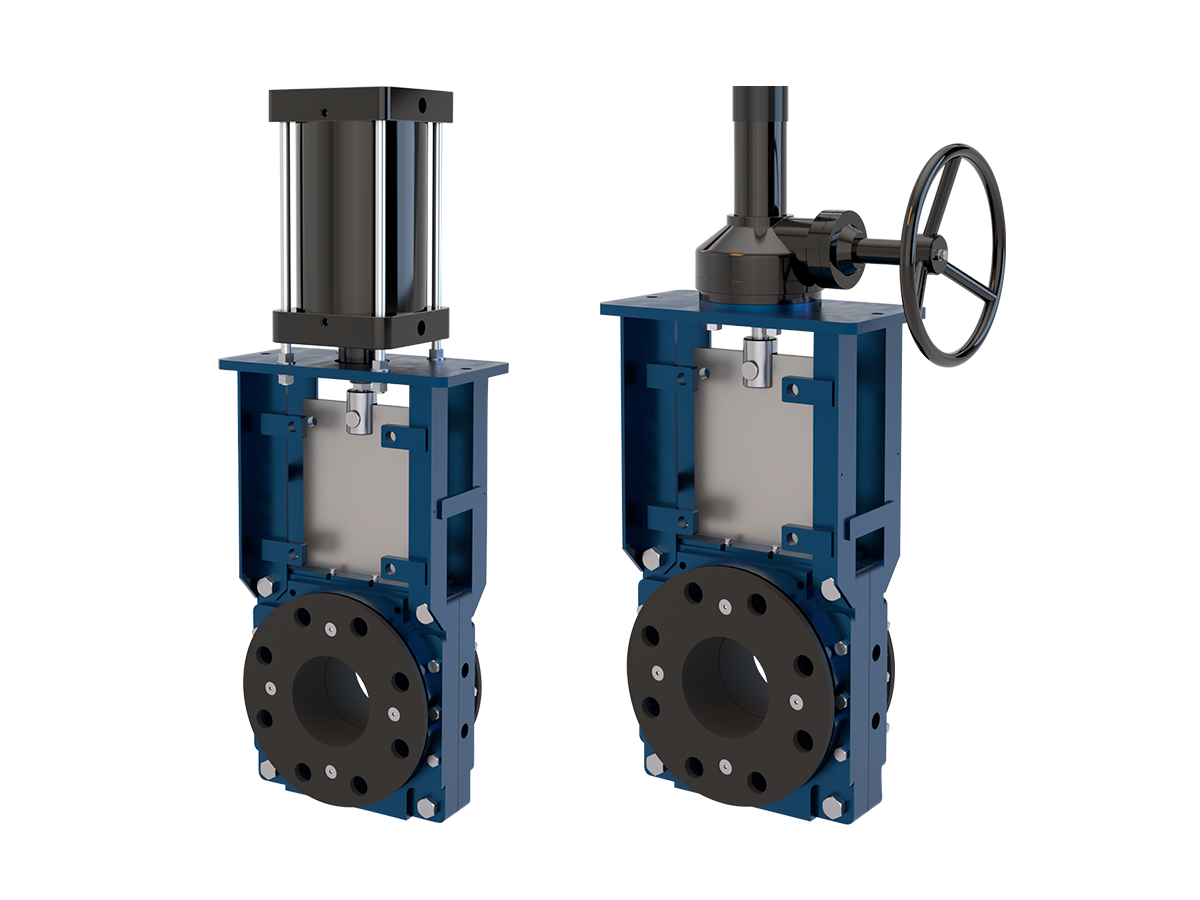

High Pressure Slurry Knife Gate Valve
Size range
DN 80~DN900
temperature range
-46°C~287°C
maop
DN80 ~ DN900 Maximum pressure 50Bar
High Pressure Slurry Knife Gate Valve
Technical Specifications
- High Pressure Slurry Knife Gate Valve
Information
Name: Wafer Style Slurry Valve
Series: KGV-HF
Operation: Manual,Gearbox,Pneuamtic,Electric
Flange Standard: ANSI,DIN,GOST,etc.
Spray Color: RAL5010
End Connection: Wafer
Material
Valve Body: GGG40,SS304,SS316,etc.
Sleeve: NR,EPDM,NBR,FKM,etc.
Stem: SS304
Knife Gate: SS304,316,2205,2507,etc.
Fastener: SS201,304,316,etc.
Secondary Seal: EPDM
Other
Pressure Level: PN25,PN40,PN63
Test Pressure: Max 50bar
Design Standards: Standard
Test Standards: Standard
Connect length: Standard
Application: Mine, papermaking, power plant, cement, chemical, etc.
